FSP50

FSP50 SPECIFICATION & THERMAL DATA
Model Name :
FSP50-
{{boxModelName.HSHEIGHT}}
B
{{boxModelName.FAN}}
-
{{boxModelName.PIP}}
{{boxModelName.SPR}}
{{boxModelName.TIM}}
catalog 3D CAD RoHS REACH
Step 1: Select Heat Sink Height
Step 2: Select fan
Step 3: Select Push pins and Springs
Step 4: Select TIM
Heat Sink (Height h)
Fan
  Push Pins Springs
{{INP.PIPNAME}} {{INP.SPRNO}}
Thermal Interface

Note

The thermal interface materials listed here are phase change materials (PCMs).

These PCMs are naturally tacky and will be pre-applied to the heat sink. However, PCMs may peel-off from the heat sink base when removing the release liner prior to heat sink installation. Since PCMs rely on their natural tackiness instead of an adhesive, this can happen.

In light of this, we recommend that our customers apply additional pressure to the PCMs prior to removing the protective liner to allow the PCMs to wet out on the heat sink surface (refer to instruction item #4 below).

Storage and Handling Instruction

  • To order individual components, such as push pins or springs,please visit each link/page.

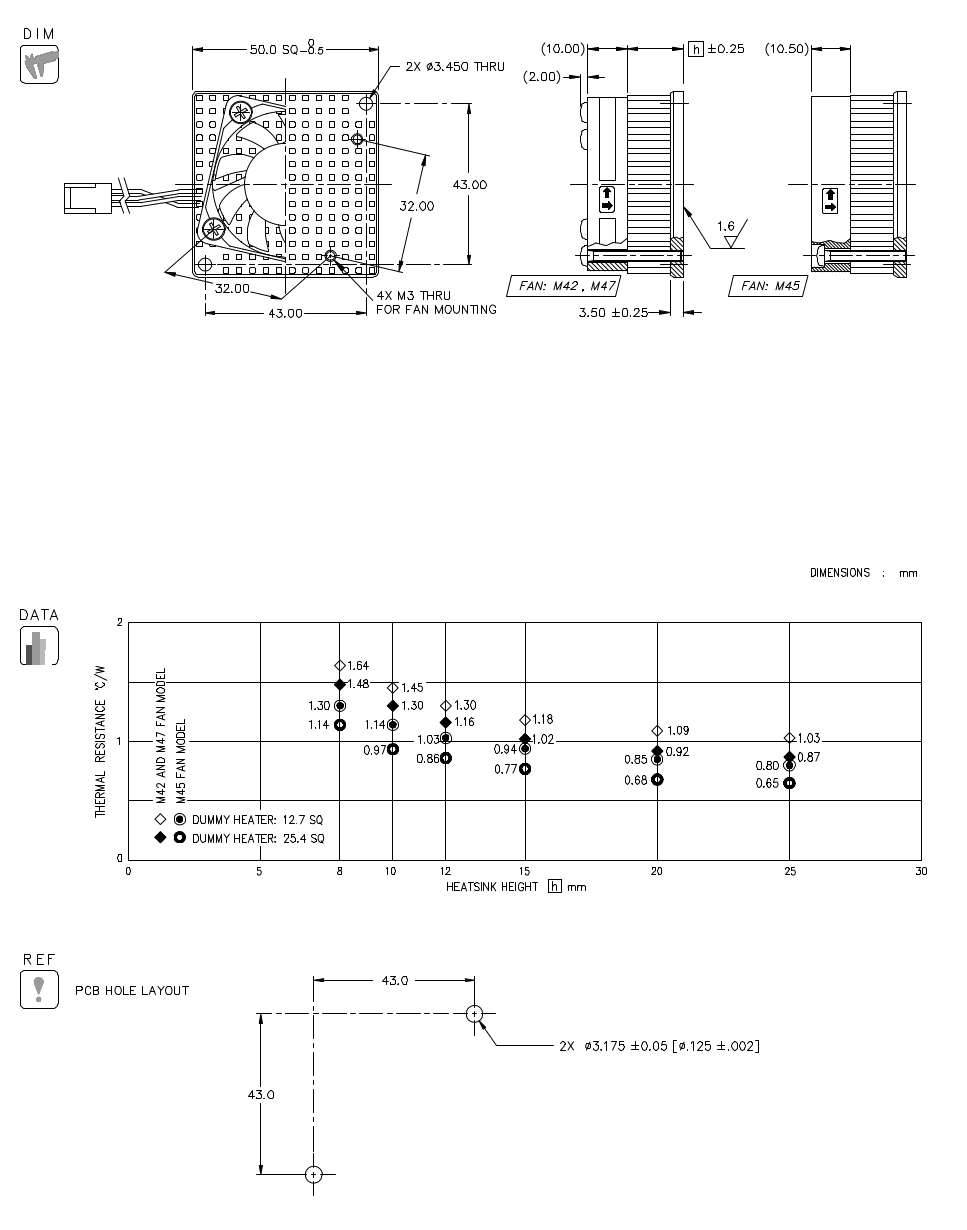

Dimension and Thermal Data
  • HEAT SINK
    MATERIAL : A6063
    FINISH : BLACK ANODIZE
  • FAN
    M42 : SANYO DENKI 109P0412H901

    40 SQ +1.0/-0, 10 +1/-0 THK (12V)

    M45 : COFAN F-4010H12BⅡ-12

    40.5 SQ ±0.4, 10.5 ±0.2 THK (12V)

    M47 : SANYO DENKI 109P0405H901
    40 SQ +1.0/-0, 10 +1/-0 THK (5V)
  • SCREW (QTY 4) PAN HEAD PHILLIPS M3 STEEL Cr3+
HEATSINK ONLY
HEATSINK HEIGHT (h) WEIGHT (grams)
8.00 27.3
10.00 29.4
12.00 31.4
15.00 34.5
20.00 39.6
25.00 44.7

HEATSINK AND FAN ASSEMBLY

MODEL WEIGHT (grams)
FSP50-8M42 51.5
FSP50-10M42 53.9
FSP50-12M42 56.3
FSP50-15M42 59.9
FSP50-20M42 65.8
FSP50-25M42 71.7
MODEL WEIGHT (grams)
FSP50-8M45 45.3
FSP50-10M45 47.7
FSP50-12M45 50.1
FSP50-15M45 53.7
FSP50-20M45 59.6
FSP50-25M45 65.5
MODEL WEIGHT (grams)
FSP50-8M47 51.5
FSP50-10M47 53.9
FSP50-12M47 56.3
FSP50-15M47 59.9
FSP50-20M47 65.8
FSP50-25M47 71.7
