Accessory - Fan

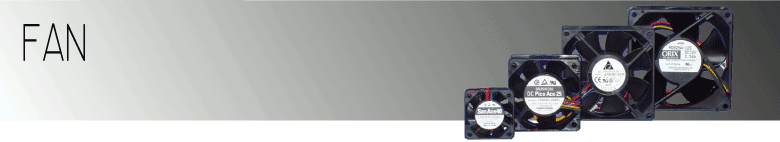

TITLE FAN Picture

We usually carry the following fans in stock. Please feel free to contact us.

Fan
Model Name
M42
M45
M60
M80
Size (mm) 40 x 40 x 10 40.5 x 40.5 x 10.5 60 x 60 x 25 80 x 80 x 25.4
Vendor SANYO DENKI COFAN SANYO DENKI Oriental Motor
Mfg. PN (109P0412H901) (F-4010H12BⅡ-12) (109R0612H401) (T-MD825B-12-G)
Voltage DC V 12 12 12 12
Current AMP 0.07 0.18 0.11 0.25
Speed RPM 6,200 7,000 3,800 3,800
Maximum Air Flow m3/min 0.15 0.252 0.53 1.00
Maximum Air Pressure mmAq 4.20 4.15 4.10 5.00
Noise Level dB[A] 25 34 28 35
Signal Output Speed Sensor Speed Sensor Speed Sensor NO
Wire length (mm) 320 +/- 20 229 +/- 10 300 +/- 20 285 +/- 25
Pin Assignment
PINSIGNALWIRE
1GNDBLACK
2+12VDCRED
3TACHYELLOW
PINSIGNALWIRE
1GNDBLACK
2+12VDCRED
3TACHYELLOW
PINSIGNALWIRE
1GNDBLACK
2+12VDCRED
3TACHYELLOW
PINSIGNALWIRE
1GNDBLACK
2+12VDCRED
3------
Housing Molex 5051-03
(or equivalent)
Molex 5051-03
(or equivalent)
Molex 5051-03
(or equivalent)
Molex 5051-03
(or equivalent)
Terminal Molex 5159PBT
(or equivalent)
Molex 5159PBT
(or equivalent)
Molex 5159PBT
(or equivalent)
Molex 5159PBT
(or equivalent)
Finger Guard NO NO NO YES
  Operating Manual --- Operating Manual Operating Manual

Model Name
M82
M86
M92P
M93
Size (mm) 80 x 80 x 15 80 x 80 x 25 92 x 92 x 25.4 92 x 92 x 25.4
Vendor SANYO DENKI SANYO DENKI Oriental Motor SANYO DENKI
Mfg. PN (109P0812M701) (109R0812G401) (MD925A-12S) (109P0912M401)
Voltage DC V 12 12 12 12
Current AMP 0.09 0.37 0.24 0.10
Speed RPM 2,000 4,500 3,400 2,100
Maximum Air Flow m3/min 0.57 1.50 1.30 1.04
Maximum Air Pressure mmAq 1.29 8.20 5.00 2.40
Noise Level dB[A] 21 40 36 27
Signal Output Speed Sensor Speed Sensor Speed Sensor Speed Sensor
Wire length (mm) 300 +/- 20 300 +/- 20 285 +/- 25 300 +/- 20
Pin Assignment
PINSIGNALWIRE
1GNDBLUE
2+12VDCRED
3TACHYELLOW
PINSIGNALWIRE
1GNDBLACK
2+12VDCRED
3TACHYELLOW
PINSIGNALWIRE
1GNDBLACK
2+12VDCRED
3TACHYELLOW
PINSIGNALWIRE
1GNDBLUE
2+12VDCRED
3TACHYELLOW
Housing Molex 5051-03
(or equivalent)
Molex 5051-03
(or equivalent)
Molex 5051-03
(or equivalent)
Molex 5051-03
(or equivalent)
Terminal Molex 5159PBT
(or equivalent)
Molex 5159PBT
(or equivalent)
Molex 5159PBT
(or equivalent)
Molex 5159PBT
(or equivalent)
Finger Guard NO NO NO NO
  Operating Manual Operating Manual Operating Manual Operating Manual
Air Flow : 1 m³/min = 35.31 CFM

Finger Guard
Model Name Fan Size (mm) Fan Model Name
FG60
60 x 60 Fan M60 Finger Guard
FG80
80 x 80 Fan M80 , M82 , M86
FG92
92 x 92 Fan M92P , M93
