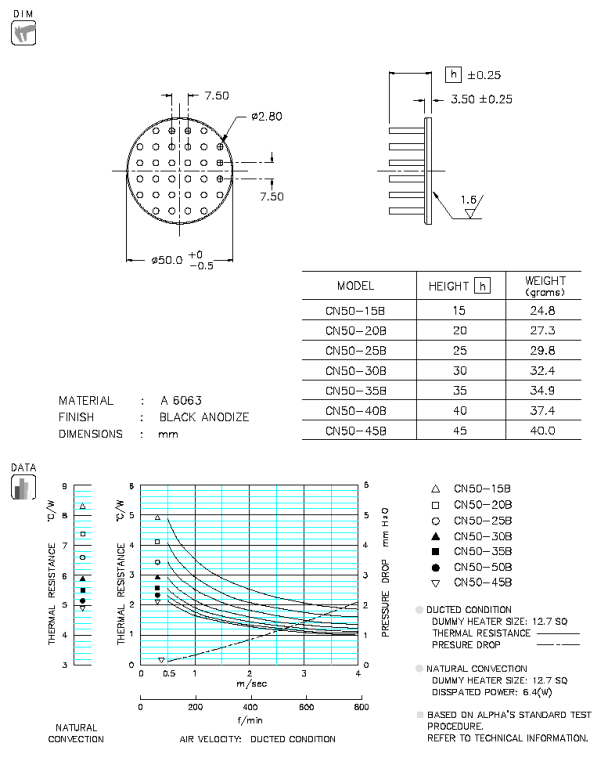

Model | Height h (mm) | Base (mm) | Weight (g) | Download | Availability / Price / Order | Option | ||
---|---|---|---|---|---|---|---|---|
15 | 3.5 | 24.8 | STEP | IGES | Additional Engineering Designation Currently, we do not allow this heat sink to be customized using the online tools. However, we are happy to work with you directly in creating a customized version. Please send your detailed request to Alpha Sales by email. (Please include a drawing/sketch if one is available). Please include following information: Company name : Contact name : Country : Tel : Estimated quantity : Heat Sink part number you would like to customize : Customization details : | |||
20 | 27.3 | STEP | IGES | |||||
25 | 29.8 | STEP | IGES | |||||
30 | 32.4 | STEP | IGES | |||||
35 | 34.9 | STEP | IGES | |||||
40 | 37.4 | STEP | IGES | |||||
45 | 40.0 | STEP | IGES |
