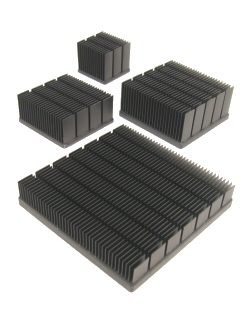

規格 | ベースサイズ | 全高 | 図面 | |
---|---|---|---|---|
UB10 | 10 x 10 | 5~20 | DXF | |
UB15 | 15 x 15 | 6~20 | DXF | |
UB17 | 17 x 17 | DXF | ||
UB19 | 19 x 19 | 6~25 | DXF | |
UB22 | 22 x 22 | DXF | ||
UB25 | 25 x 25 | DXF | ||
UB28 | 28 x 28 | DXF | ||
UB30 | 30 x 30 | DXF | ||
UB32 | 32 x 32 | DXF | ||
UB35 | 35 x 35 | DXF | ||
UB38 | 38 x 38 | DXF | ||
UB40 | 40 x 40 | DXF | ||
UB42 | 42 x 42 | DXF | ||
UB45 | 45 x 45 | DXF | ||
UB48 | 48 x 48 | DXF | ||
UB50 | 50 x 50 | DXF | ||
UB52 | 52 x 52 | DXF | ||
UB54 | 54 x 54 | DXF | ||
UB60 | 60 x 60 | DXF | ||
UB70 | 70 x 70 | 8~30 | DXF | |
UB80 | 80 x 80 | DXF | ||
UB90 | 90 x 90 | DXF | ||
UB100 | 100 x 100 | 10~30 | DXF | |
JUB1P | ∗ 100 x 100 以上 | 12~25 |
長方形 | |||||||
– | UB2010 | – | 20 x 10 | 6~20 | – | DXF(UB2010) | |
UB2030 | UB3020 | 20 x 30 | 30 x 20 | 6~25 | DXF(UB2030) | DXF(UB3020) | |
UB2035 | – | 20 x 35 | – | DXF(UB2035) | – | ||
UB2040 | UB4020 | 20 x 40 | 40 x 20 | DXF(UB2040) | DXF(UB4020) | ||
UB3040 | UB4030 | 30 x 40 | 40 x 30 | DXF(UB3040) | DXF(UB4030) | ||
UB3550 | UB5035 | 35 x 50 | 50 x 35 | DXF(UB3550) | DXF(UB5035) | ||
UB4060 | UB6040 | 40 x 60 | 60 x 40 | DXF(UB4060) | DXF(UB6040) | ||
UB5070 | UB7050 | 50 x 70 | 70 x 50 | 8~25 | DXF(UB5070) | DXF(UB7050) | |
UB6080 | UB8060 | 60 x 80 | 80 x 60 | DXF(UB6080) | DXF(UB8060) | ||
UB8090 | UB9080 | 80 x 90 | 90 x 80 | 8~30 | DXF(UB8090) | DXF(UB9080) | |
UB80100 | UB10080 | 80 x 100 | 100 x 80 | DXF(UB80100) | DXF(UB10080) | ||
– | UB12060 | – | 120 x 60 | – | DXF(UB12060) | ||
– | UB13070 | – | 130 x 70 | – | DXF(UB13070) | ||
– | JUB2Z | – | ∗ 130 x 70 以上 | 12~25 |
