FSR40

FSR40 SPECIFICATION & THERMAL DATA
Model Name :
FSR40-
{{boxModelName.HSHEIGHT}}
B
{{boxModelName.FAN}}
-
{{boxModelName.PIP}}
{{boxModelName.SPR}}
{{boxModelName.TIM}}
catalog 3D CAD RoHS REACH
Step 1: Select Heat Sink Height
Step 2: Select fan
Step 3: Select Push pins and Springs
Step 4: Select TIM
Heat Sink (Height h)
Fan
  Push Pins Springs
{{INP.PIPNAME}} {{INP.SPRNO}}
Thermal Interface

Note

The thermal interface materials listed here are phase change materials (PCMs).

These PCMs are naturally tacky and will be pre-applied to the heat sink. However, PCMs may peel-off from the heat sink base when removing the release liner prior to heat sink installation. Since PCMs rely on their natural tackiness instead of an adhesive, this can happen.

In light of this, we recommend that our customers apply additional pressure to the PCMs prior to removing the protective liner to allow the PCMs to wet out on the heat sink surface (refer to instruction item #4 below).

Storage and Handling Instruction

  • To order individual components, such as push pins or springs,please visit each link/page.

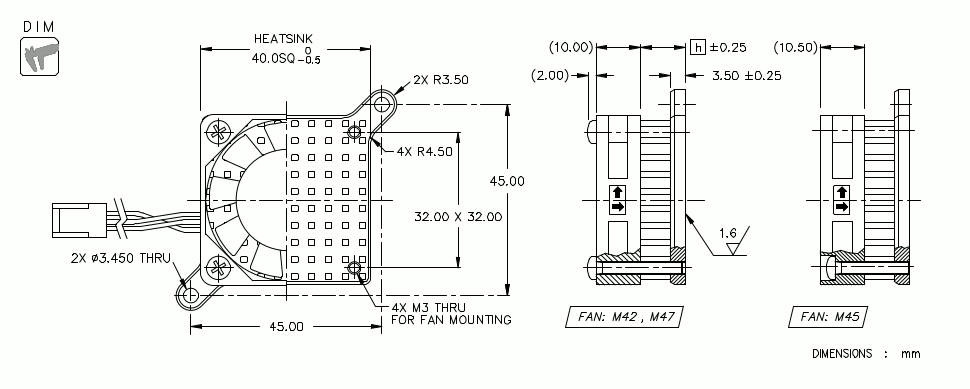

Dimension and Thermal Data
  • HEAT SINK
    MATERIAL : A6063
    FINISH : BLACK ANODIZE
  • FAN
    M42 : SANYO DENKI 109P0412H901
    40 SQ +1.0/-0, 10 +1/-0 THK (12V)
    M45 : COFAN F-4010H12BⅡ-12
    40.5 SQ ±0.4, 10.5 ±0.2 THK (12V)
    M47 : SANYO DENKI 109P0405H901
    40 SQ +1.0/-0, 10 +1/-0 THK (5V)
  • SCREW (QTY 4) PAN HEAD PHILLIPS M3 STEEL Cr3+
HEATSINK ONLY
HEATSINK HEIGHT (h) WEIGHT (grams)
8.00 18.2
10.00 19.3
12.00 18.2
15.00 21.4
20.00 24.9
25.00 27.7

HEATSINK AND FAN ASSEMBLY

MODEL WEIGHT (grams)
FSR40-8M42 42.0
FSR40-10M42 43.9
FSR40-12M42 45.4
FSR40-15M42 47.2
FSR40-20M42 51.1
FSR40-25M42 54.7
MODEL WEIGHT (grams)
FSR40-8M45 36.2
FSR40-10M45 37.8
FSR40-12M45 38.9
FSR40-15M45 41.0
FSR40-20M45 45.0
FSR40-25M45 48.6
MODEL WEIGHT (grams)
FSR40-8M47 42.5
FSR40-10M47 44.2
FSR40-12M47 45.7
FSR40-15M47 47.9
FSR40-20M47 51.4
FSR40-25M47 55.0

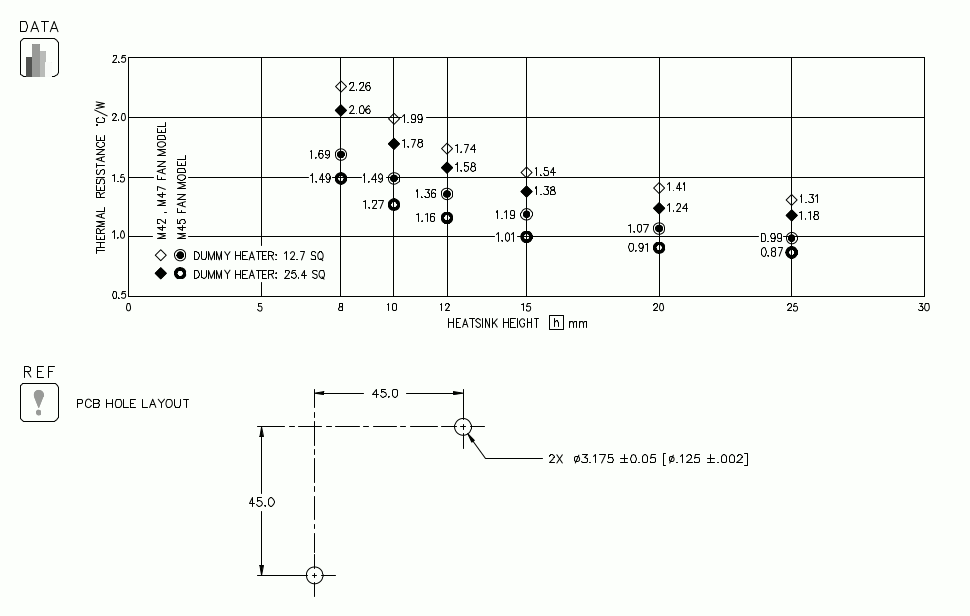

Dimension and Thermal Data
